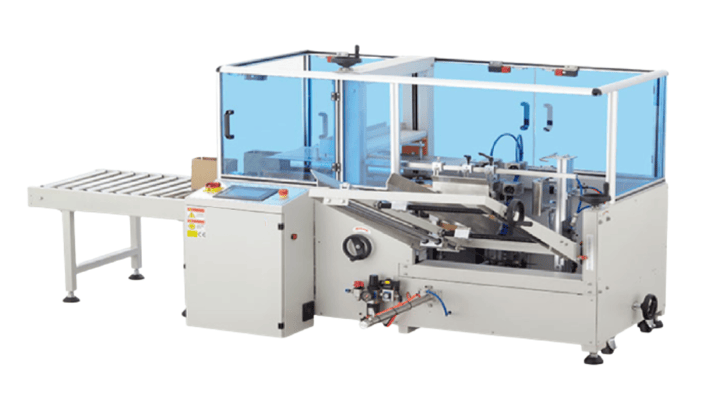

Model: NW-GK30-15
carton erector NW-GK30-15 is specially designed for the industry for the use of small cartons, which meets the demand of 10-15 boxes per minute, is equivalent to 10 times of manual sealing. It can solve the problems of large quantity of packaging and slow packaging in peak season. At the same time, it does not need any maintenance. It can be used immediately as long as it is powered on. It can be equipped with weighing, labeling, scanning and other equipment you need, and also can be connected to the warehousing system to complete the whole warehousing and shipping inventory
Standard specification
Carton Opening Speed
10-15 cases/min
Carton Size
Length: 130-320mm Width: 80-200mm Height: 90-200mm
Power Supply
220V 50/60Hz 1 Phase
Power
240W
Adhesive Tape Width
48mm, 2 inch
Carton Storage Quantity
80~100pcs (1000mm)
Air Consumption
450NL/min
Table Height
650+50mm
Machine dimension
L1800×W1800×H1350mm
Machine Weight
350KG
