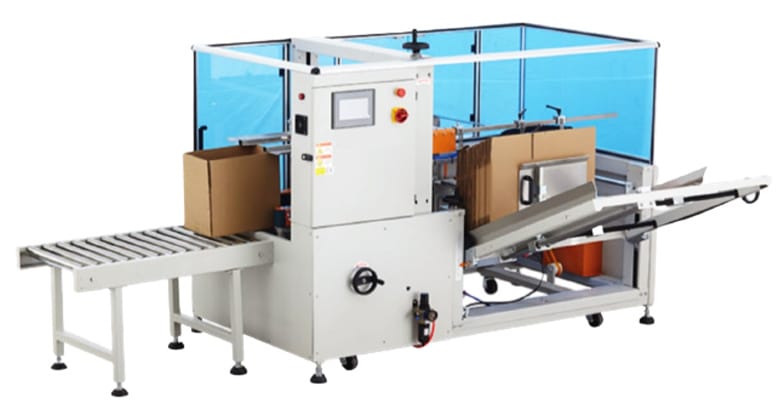

Model: NW-GK40E
NW-GK40E is equipped with protective door in tape replacement area to meet market requirements, more convenient and easy. The machine adopts strict production process, vertical producing speed reaches 12 cartons/min, drawing cartons and forming, and adding automatic alarm function when tape broken or no tape. It has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.
Standard specification
Carton Opening Speed
Up to 12 cases/min
Carton Size
L250-450×W150-400×H100-400mm
Power Supply
110/220V 50/60Hz 1 Phase
Power
240W
Adhesive Tape Width
48/60/75mm (Choose one type)
Carton Storage Quantity
80-100pcs (800-1000mm)
Air Consumption
450NL/min
Air Compressing
6kg/cm³
Table Height
620+30 mm
Machine dimension
L2100×W2100×H1450mm
Machine Weight
450KG
