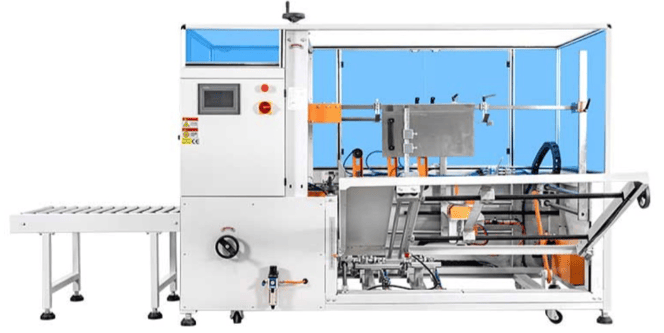

Model: NW-GK50E
The automatic carton erector NW-GK50E is a vertical box-opening machine with a speed of 10 boxes/min for large carton (larger than this model is also available). The machine adopts PLC+ human-machine interface control. The carton can automatically complete the folding and sealing bottom during the transportation, and it does not stay in the process of folding the bottom. That is to say, the machine can complete the whole process of suction box, molding, folding and sealing bottom of carton at the same time. It is easy to operate, simple to maintain, and stable in performance.
Standard specification
Carton Opening Speed
8-10 cases/min
Carton Size
L320-650xW200-500xH150-500mm
Power Supply
220V 50/60Hz 1 Phase
Power
240W
Adhesive Tape Width
48/65-72mm(Choose one type), 2inch, 3inch
Carton Storage Quantity
80-100pcs (1000mm)
Air Consumption
500NL/min
Air Compressing
6kg/cm³
Table Height
620+30 mm
Machine dimension
L2350×W2100×H1650mm
Machine Weight
500KG
