Banding machine
Model: NW-SPWK-02 series

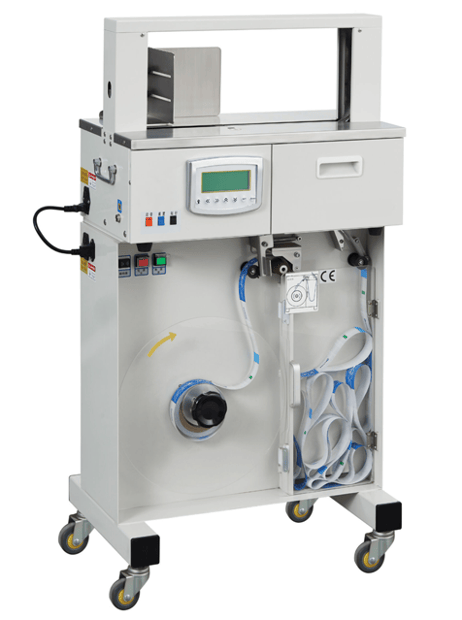

It is a standard manual banding station, which use heating element to seal the band for wrapping over the products. It is the table-top style, but the big-roll feeder can be added as an option to be used with large banding roll as shown in the picture. The band material can be either PP band or OPP film.
Standard specification
Speed
25 bands/min
Banding Size
Min: 30x10mm Max: 460x180mm
Power Supply
220VAC 1PH
Power
450W
Banding material
OPP film or PP band
Banding Width
Width: 19.2-19.6mm (Model 20LTB)
Width: 29.2-29.6mm (Model 30LTB)
Banding Core
40mm
Banding Tension
5-40N
Control
PCB + Key board control panel
Machine Dimension
L 611 x W 364 x H 1175mm
Machine Weight
72KG
