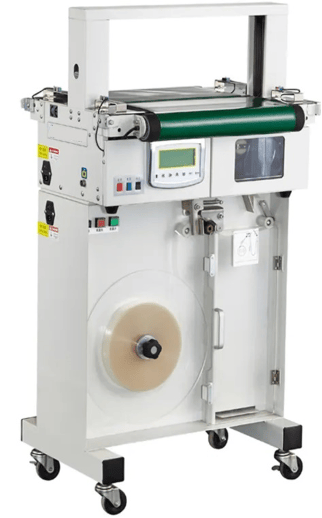

Banding machine
Model: NW-SPWK20-AB
The NW-SPWK20-AB series is an update of standard model to make this banding machine work perfectly for automatic process. There are sensors to stop the conveyor when the products are reached the banding position. After the products are banded, the out feed conveyor will start to convey the products out of the machine.
Standard specification
Speed
20 bands/min
Banding Size
Min: 30x10mm Max: 460x200mm
Power Supply
220VAC 1PH
Power
450W
Banding material
OPP film or PP band
Banding Width
Width: 29.2-29.6mm
Banding Core
40mm
Banding Tension
5-40N
Control
PCB + Key board control panel
Machine Dimension
L 611 x W 464 x H 1275mm (can be customized)
Machine Weight
95KG
Feeding Station:
Jumbo roll feeder is available as an option (as shown at the picture)
