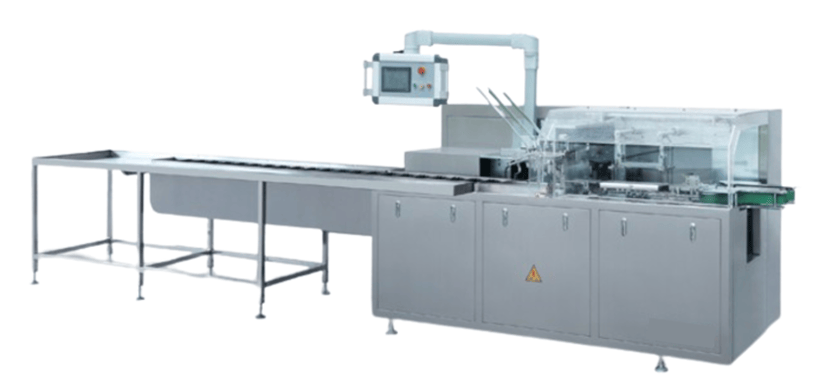

Model: NW-KX130
NW-KX130 is an automatic small box cartoning machine suitable for packing all kinds of product into small carton boxes, like soap, toothpaste, cosmetic cream, and etc. it can connect to other machines to be automatic whole line, like from the filling station and transport to our cartoning machine.
We do serve to design the whole system from filling station to end of the line as packing small cartons into big corrugated carton.
Standard specification
Speed
30-80 boxes/min
Carton Size
L55-200×W14-90×H13-65mm (can do custom design)
Power Supply
220V 50/60Hz 1Phase or 380 VAC 3Ph
Power
1.5 kW
Type of closing carton
Tuck-In, Bottom lock, or Hotmelt glue
Table Height
600+-150mm
Air Consumption
20m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L3800×W1100×H1900mm
Machine Weight
1500KG
