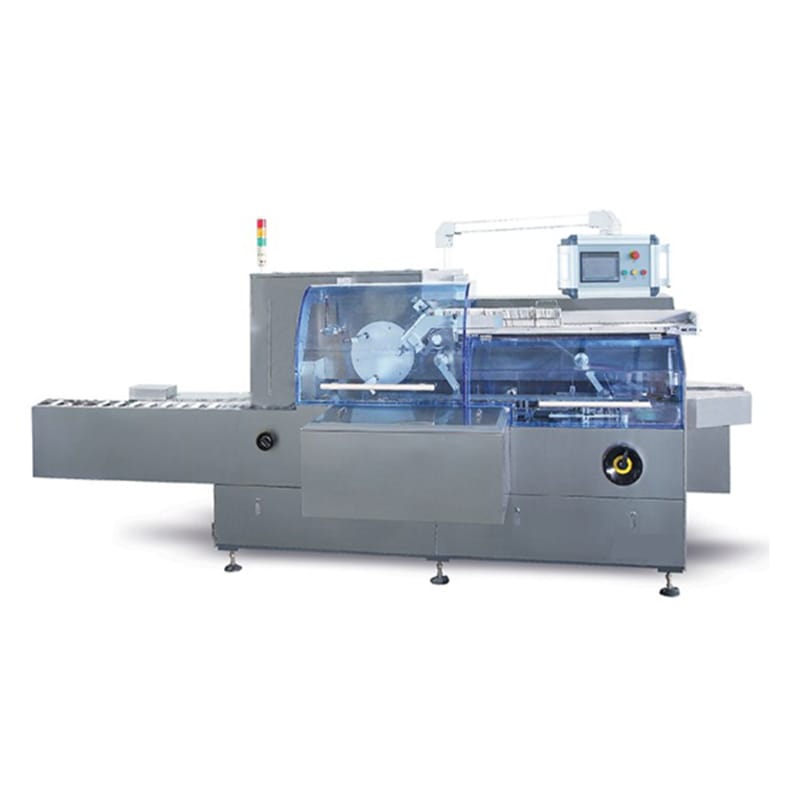

Model: NW-KX160SP
NW-KX160SP model is a high speed Cartoning Machine for packing all kinds of product into carton box. Its maximum speed can be achieved to 160 boxes/min (depending on carton’s specifications). Machine can be customized and upgraded according to customer needs.
Standard specification
Speed
20-160 boxes/min
Carton Size
L100-250×W60-160×H20-70mm (can do custom design)
Power Supply
380 VAC 3Ph
Power
9.5 kW
Type of closing carton
Tuck-In or Hotmelt glue
Table Height
600+-150mm
Air Consumption
20m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L5000×W1700×H1900mm
Machine Weight
2000KG
