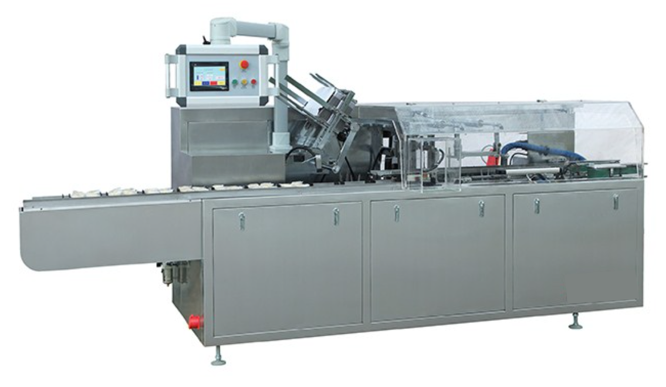

Model: NW-KX250
For large carton, our NW-KX450 was designed to be able to work perfectly for the large size. It can be used for cling film or aluminum film carton, where it is also popular in garbage bag cartons. This model has also been used in frozen food industry, where the cartons on large size. This cartoning model is supported for tuck-in, hotmelt sealing, or bottom lock style carton.
Standard specification
Speed
30-80 boxes/min
Carton Size
L100-350×W100-250×H20-100mm (can do custom design)
Power Supply
380 VAC 3Ph
Power
9.5 kW
Type of closing carton
Tuck-In, Bottom-lock, or Hotmelt glue
Table Height
600+-150mm
Air Consumption
20m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L3500×W1350×H1900mm
Machine Weight
1500KG
