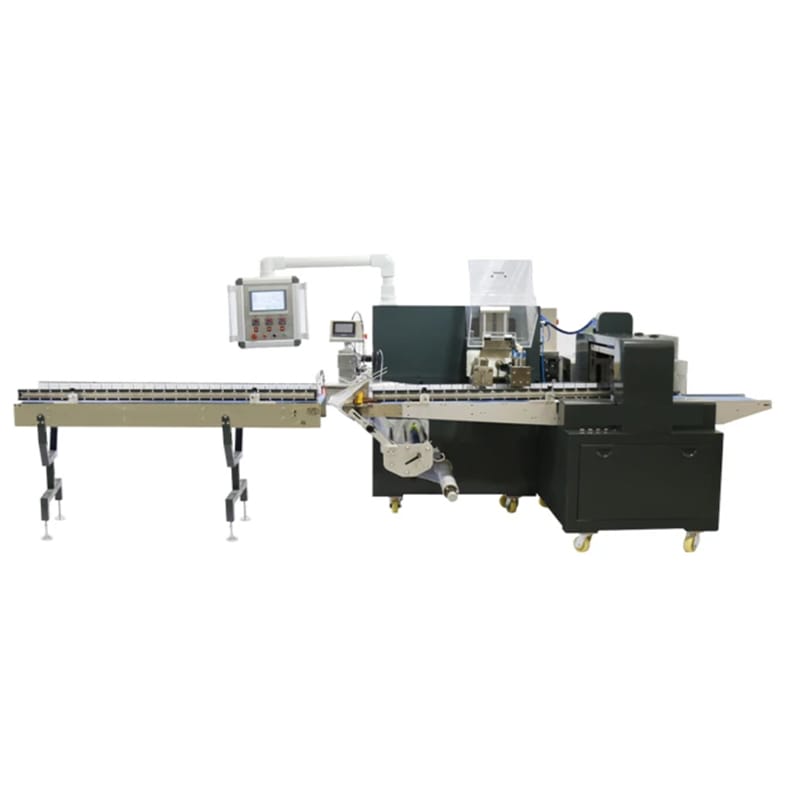

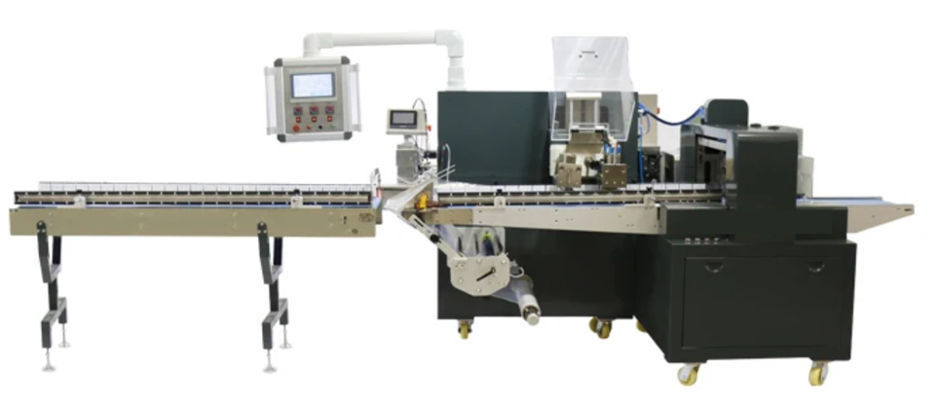

Box Motion Flow pack
Model: NW-SS689XWS
This model is economical horizontal flowpack motion with box-motion/reciprocator cutter technology. It is equipped with 3 servo motors driven and easy-to-use foundation. It poises with standard version like no-product no-bag function and 99-memory function to save package parameters as product position, packing speed, and bag length.
Standard specification
Speed
10-40 bags/min
Packing Size
L 80-6000mm, W 50-320mm, H 3-140mm
Power Supply
220V 1PH
Power
5.7kW
Packing Film width
50-680mm
Driving equipment
3 servos
Packing material
OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.
Air Consumption
120NL/min
Air Compressing
≥ 0.6mPa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L5000×W1200×H1650mm
Machine Weight
920KG
