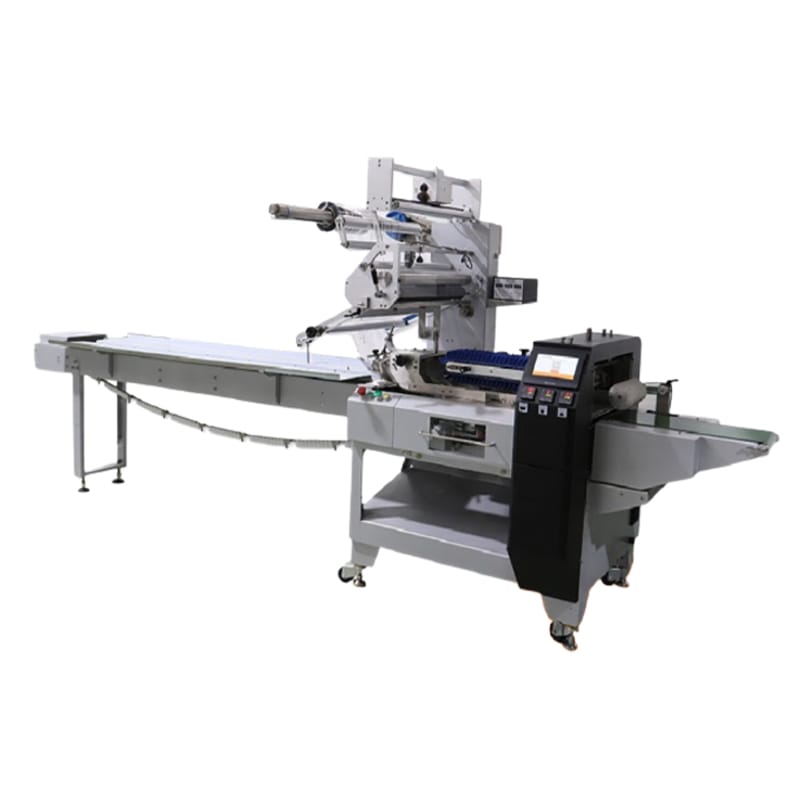

Rotary Motion Flow pack
Model: NW-ST100
NW-ST100 is a horizontal flow pack machine ideal for products needed to package separately, where products would enter from delivery conveyor and will be wrapped by the film either on top or low feeding reel. The film will be center sealed and after that the each product will be individually packaged by the end sealed with the use of rotary motion.
This model is composed of the use of servo motor with built-in formula for compact design, convenience maintenance and competitive price. It also offers empty bag prevention for no product no bag function, and product cutting prevention.
Standard specification
Speed
30-250 bags/min
Packing Size
L 60-250mm, W 35-80mm, H 5-35mm
Power Supply
220V 1PH
Power
3.8 kW
Driving equipment
3 servos
Packing material
OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.
Air Consumption
–
Air Compressing
–
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L4000×W930×H1370mm
Machine Weight
360KG
