Rotary Motion Flow pack
Model: NW-ST580ZH

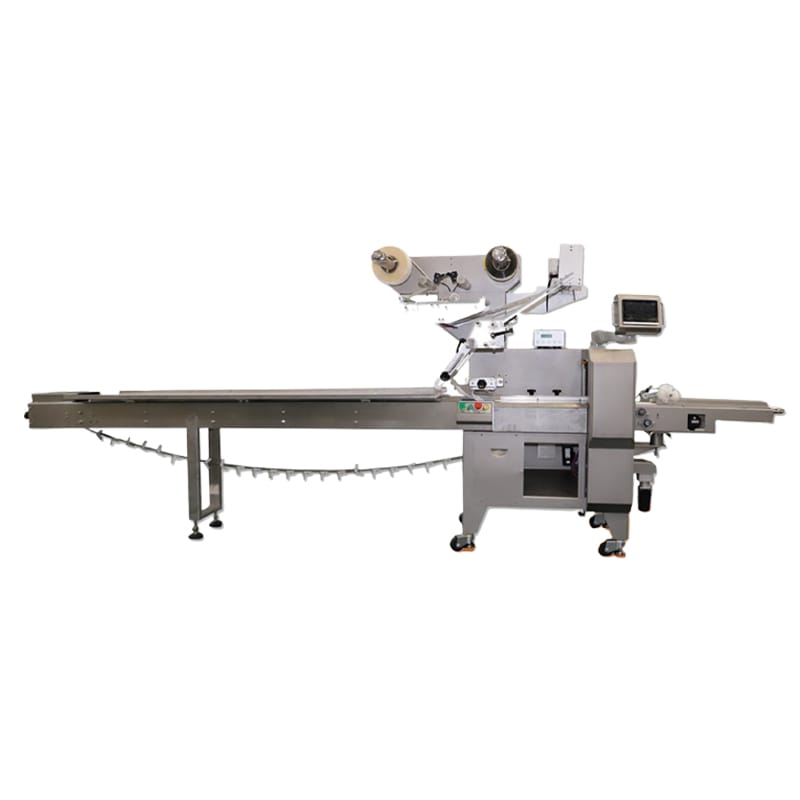

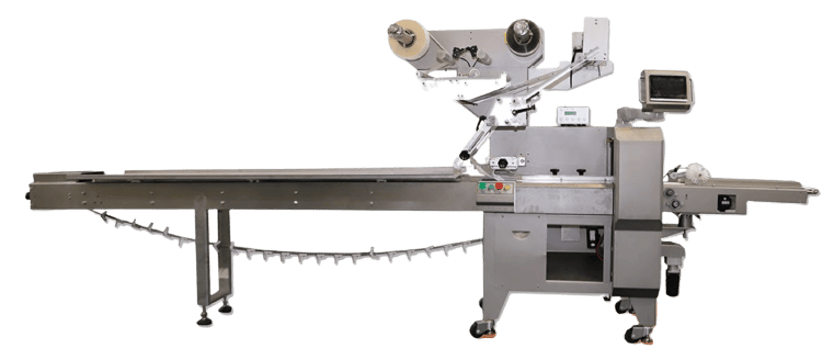

NW-ST580ZH is a high speed horizontal flow pack machine with double cutter and 5 servos. Its maximum speed can achieve upto 400 bags/min (depending on the bag size and type of product). It also offer double film loader with automatic film splicer. With 5 servos, it offers packing precision, fast speed, but yet stable production. It also offers empty bag prevention for no product no bag function, and product cutting prevention.
Standard specification
Speed
30-350 bags/min
Packing Size
L 60-350mm, W 35-160mm, H 5-50mm
Power Supply
220V 1PH
Power
7.7 kW
Packing Film width
90-400mm
Driving equipment
5 servos
Packing material
OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.
Air Consumption
–
Air Compressing
–
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L4210×W970×H1640mm
Machine Weight
600KG
