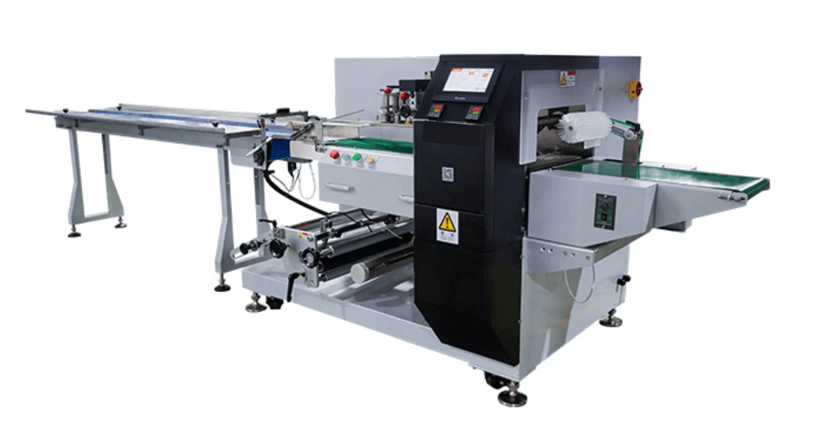

Horizontal flow pack machine NW-STVT28X

NW-STVT28X is designed mainly for fruit and vegetable pouch wrapping packing. It is a fully-automated high-speed vegetable or fresh fruits flow wrapper that is especially suited for packing elongated and leafy vegetables and fruits.

Rotary Motion Flow pack

Model: NW-STVT28X

NW-STVT28X is designed mainly for fruit and vegetable pouch wrapping packing. It is a fully-automated high-speed vegetable or fresh fruits flow wrapper that is especially suited for packing elongated and leafy vegetables and fruits. Advanced length-sensing technology ensures accurate and speedy packing. This product has a number of features that reduce packing errors and lock in freshness for a shelf-ready product. With auto-length measuring function, it ensures that products fit comfortably in the package, and prevention-on-cut-on product protection also keeps packed produce from being cut, assuring consistent packing quality. This feature also allows for mixed items to be packed in one machine.

Standard specification

Speed

10-80 bags/min

Packing Size

L 12-500mm, W 10-200mm, H 5-80mm

Power Supply

220V 1PH

Power

4.7kW

Packing Film width

200-600mm

Driving equipment

3 servos

Packing material

OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.

Air Consumption

Air Compressing

Control

Easy-to-Use HMI Touchscreen/PLC control

Machine Dimension

L4222×W1175×H1207mm

Machine Weight

560KG
