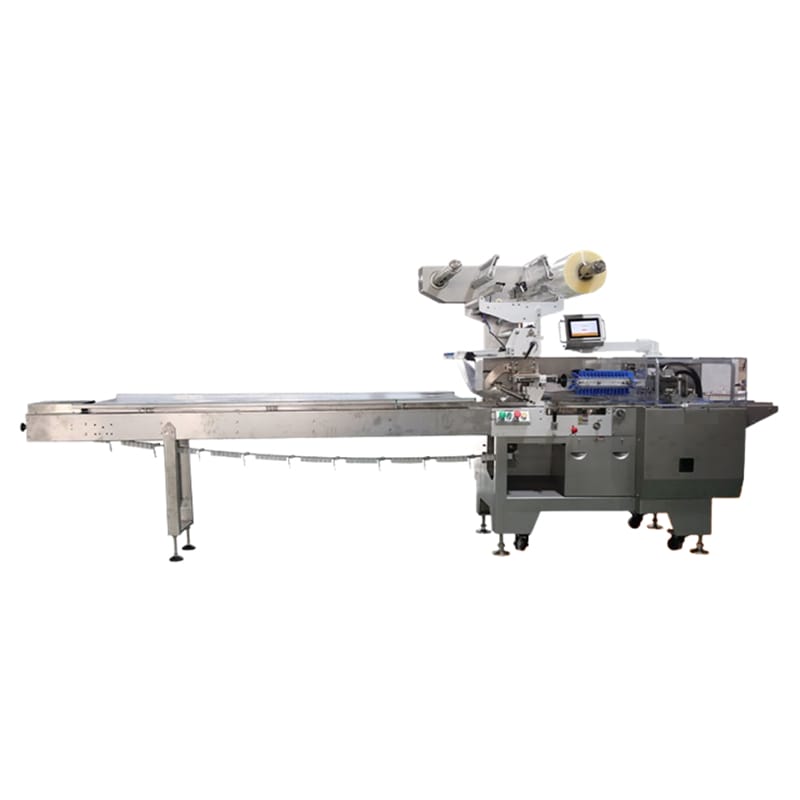

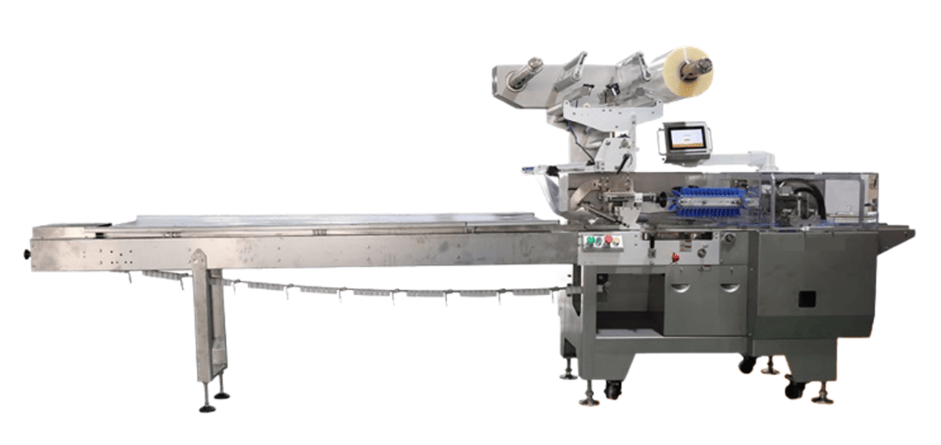

Box Motion Flow pack
Model: NW-STW60E/80E
Stainless Steel infrastructure and top-load feeding reel, along with automatic splicing (option), makes our box-motion flow pack machine, NW-STW60E/80E, is one of the best choice to pack your products. With servo-driven control, this machine offers very high accuracy that cooperating with color mark, making the tracking accuracy is upto 0.1mm. Besides standard no-product no-bag function and the prevention of cut-on product functions, the machine enhance the safety with the cutter torque protection for the system will detect the stress of the cutter automatically. When the products being cut providing the torque value being higher than the setting threshold, the cutter will stop automatically and move back.
Standard specification
Speed
30-120 bags/min
Packing Size
L 90-450mm, W 10-180mm (60E)-200 (80E), H 5-60 (60E) and 5-80 (80E)mm
Power Supply
220V 1PH
Power
7.5 kW/8kW
Packing Film width
60E 90-420mm and 80E 90-500mm
Driving equipment
5 servos
Packing material
OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.
Air Consumption
0.5-5m3/h
Air Compressing
≥ 0.6mPa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L4140×W870×H1630mm
L4360×W1020×H1540mm
Machine Weight
700KG
