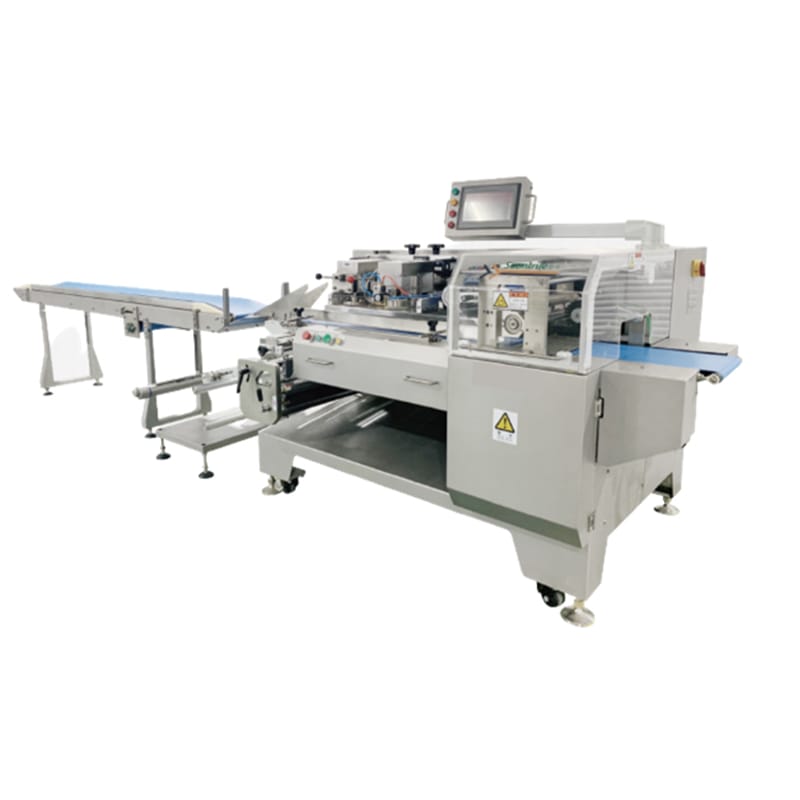

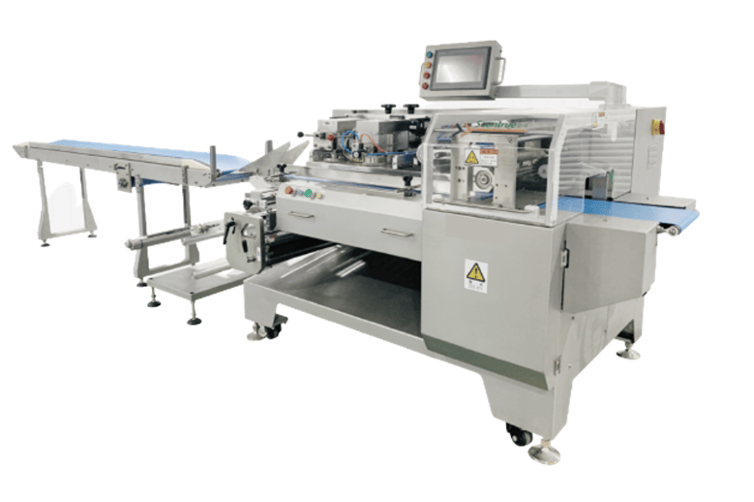

Box Motion Flow pack
Model: NW-STZ60W
This model is suitable for the packaging of large-scale products such as large-scale chocolate, bread, multi-packet, and multi-packet combination of baked cakes. The whole machine is controlled by nine servos that the knife seal is a reciprocating structure making the seal is flat and beautiful, higher precision, accurate sealing and cutting position . With touchscreen enhanced control, a variety of product parameters and formulas can be stored, without repeated settings, just download and use.
It also offers automatically adjust the bag length without manual setting.
Standard specification
Speed
10-80 bags/min
Packing Size
L 120-600mm, W 10-250mm, H 5-120mm
Power Supply
220V 1PH
Power
9kW
Packing Film width
90-500mm
Driving equipment
9 servos
Packing material
OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC, etc.
Air Consumption
0.5-5m3/h
Air Compressing
≥ 0.6mPa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L3560×W1320×H1500mm (not including delivery conveyor)
Machine Weight
2,000KG
