Model: NW-GKL-545DH

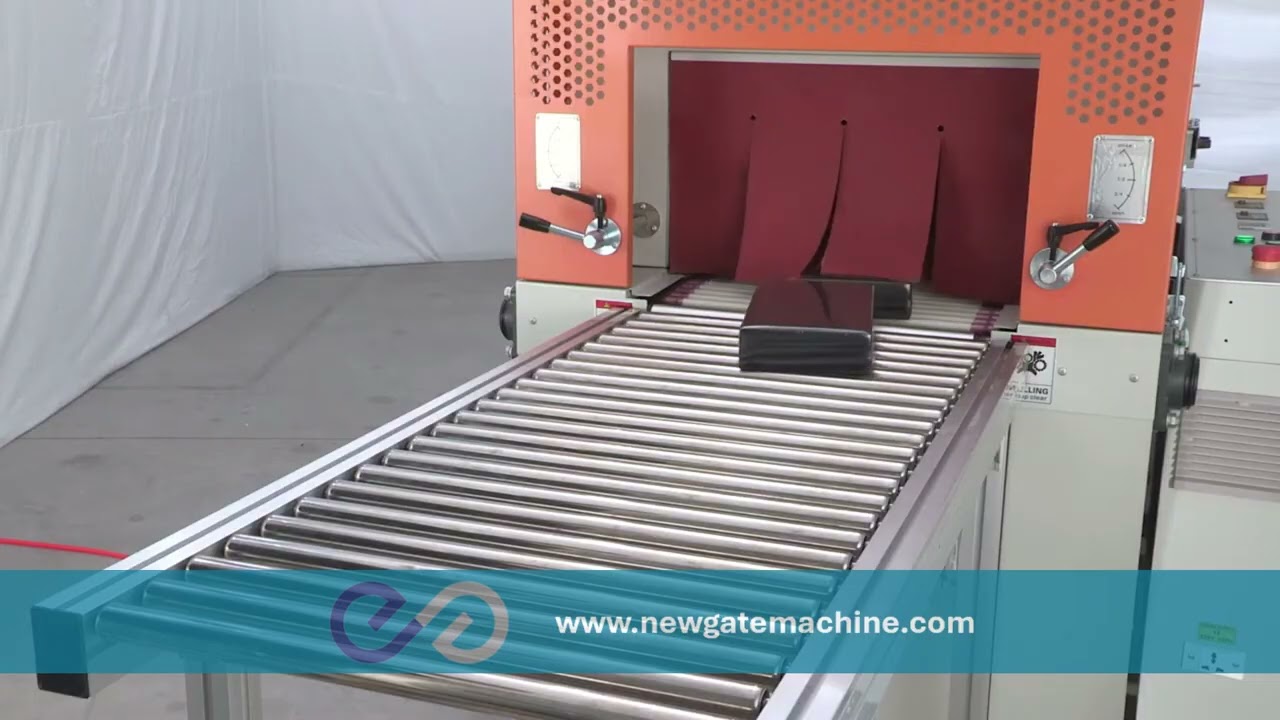

The auto side sealing shrink packaging machine is a high-speed vertical up and down sealing and shrinking packaging machine designed for the refined production of cosmetic films. Mainly for high and thin products, it can automatically complete the steps of feeding, film wrapping, sealing and cutting, shrinking, etc., to ensure that the sealing line is in the middle position, automatic film blowing, and the sealing line is thin, suitable for POF film and cross-linked film. The heat shrinkable packaging effect is beautiful, smooth and wrinkle-free, without personnel operation, the packaging speed is 5-80 Pcs/min, and the work efficiency is high. This sealing and shrinking packaging machine are also suitable for printing, color box, medicine, daily chemical, auto parts, food and other industries.
Standard specification
Speed
5-80 pcs/min
Packing Size
L≥100mm, H≤180mm, W+H ≤ 380 mm, H+L ≤ 450mm (can do custom design)
Power Supply
220V 1PH or 380 VAC 3Ph
Power
3.5 kW
Cutter Size
L 555mm x W 450mm
Air Consumption
6-8 m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L1785×W1420×H1340mm
Machine Weight
650KG
Option: Heating Tunnel
Mac temp:
200 °C
Power Supply:
220V 1PH or 380 VAC 3Ph
Power:
16kW
Standard Dimension:
L1850×W1095×H1325mm
Weight:
530 KG
