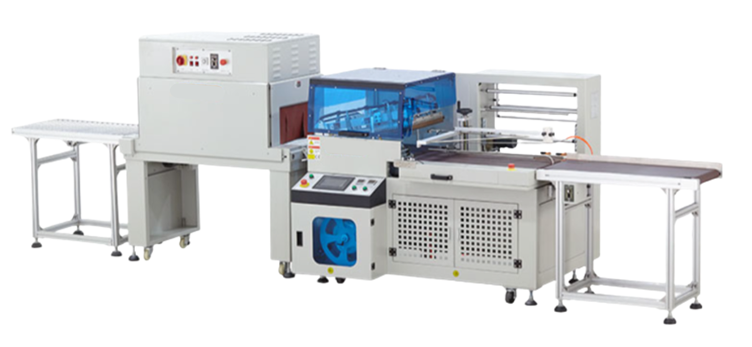

Model: NW-GKL535L
Auto L-Bar Shrink Wrapping Machine is widely used in packaging requirement for batch production, high efficiency, auto film feeding and punching, auto film wrapping, sealing and cutting, manual adjust film guiding system and in-feeding conveyor for different width and height products.
Standard specification
Speed
10-35 pcs/min
Packing Size
L≥100mm, H≤100mm, W+H ≤ 380 mm, H+L ≤ 450mm (can do custom design)
Power Supply
220V 1PH or 380 VAC 3Ph
Power
2.5 kW
Cutter Size
L 555mm x W 450mm
Air Consumption
6-8 m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L1740×W1265×H1310mm
Machine Weight
330KG

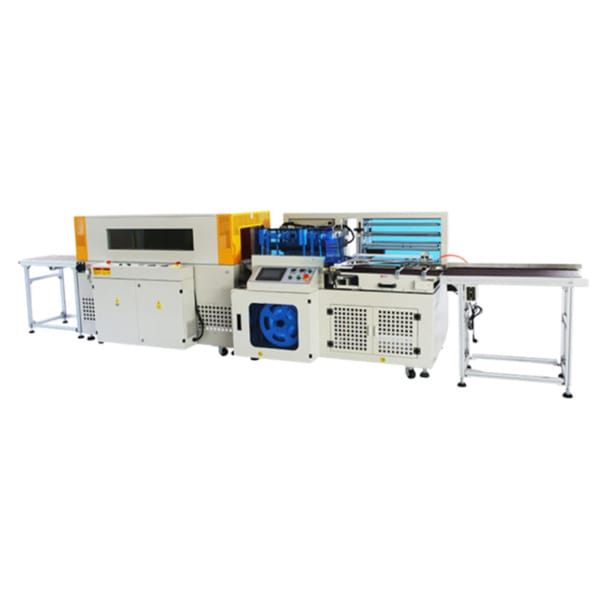

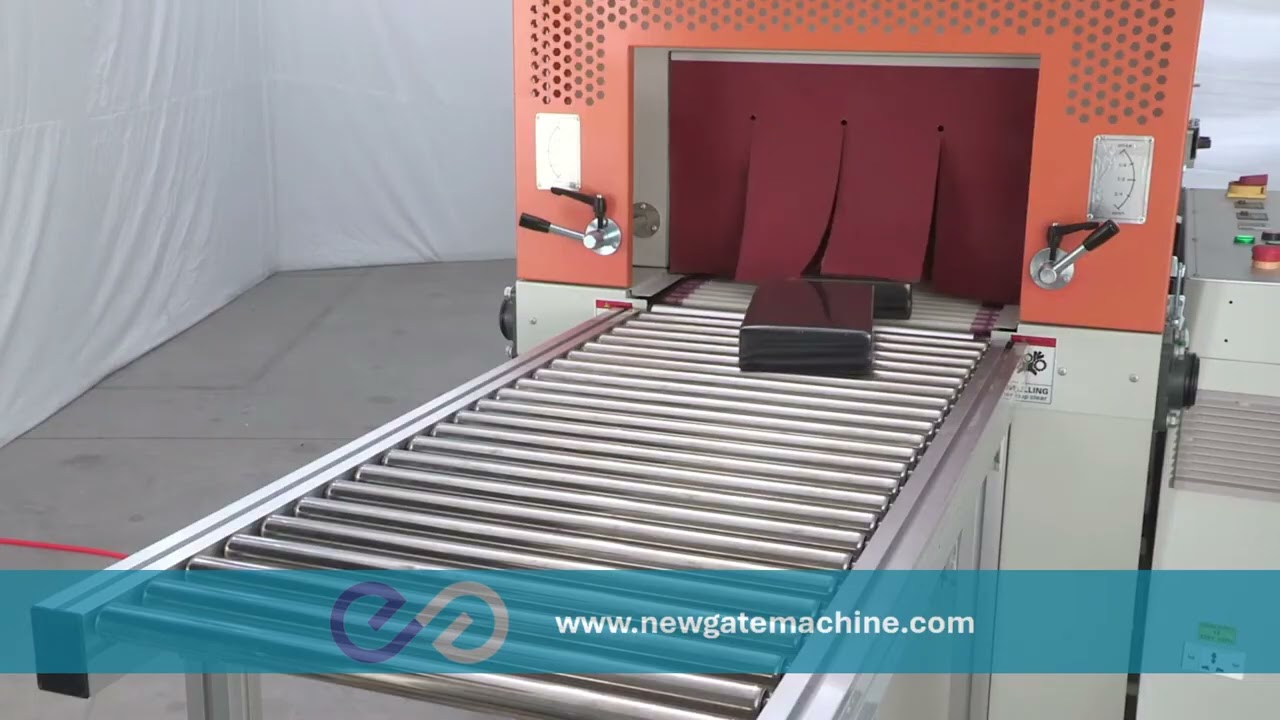

Option: Heating Tunnel
Mac temp:
200 °C
Power Supply:
220V 1PH or 380 VAC 3Ph
Power:
10kW
Standard Dimension:
L1320×W775×H1520mm
Weight:
250KG
