Model: NW-GKL545DI

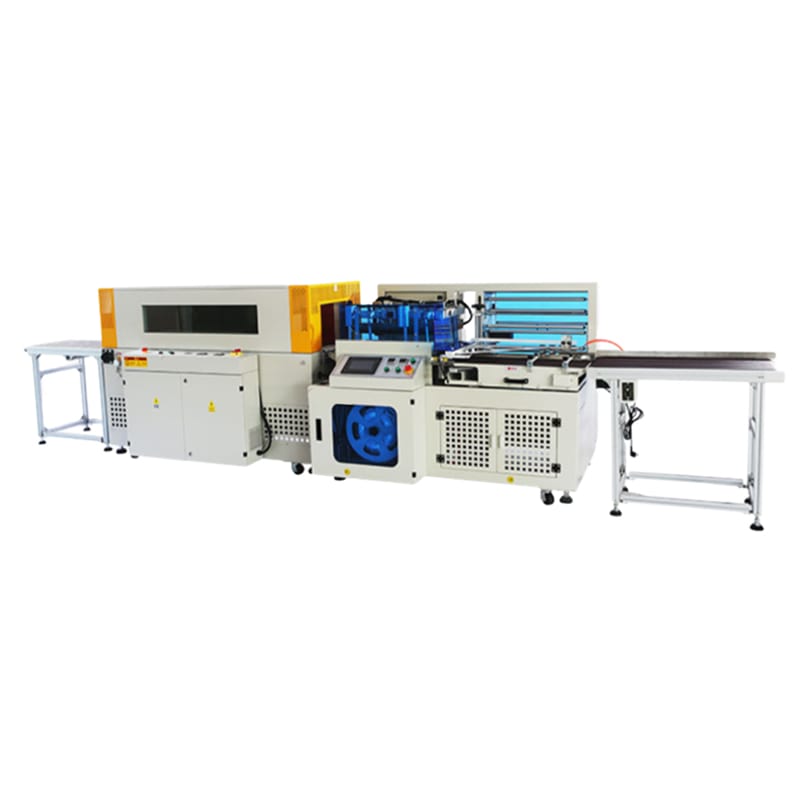

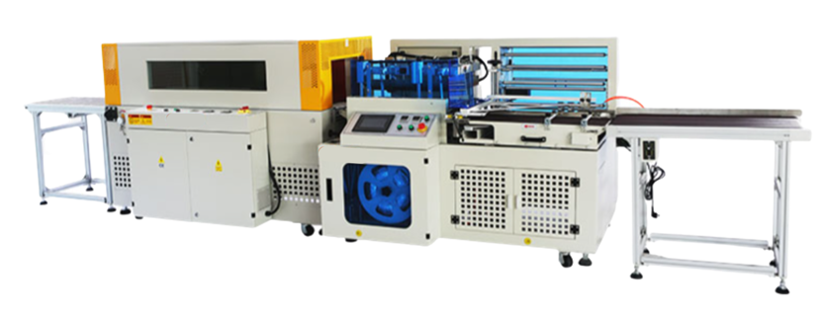

The auto side sealing shrink packaging machine is a vertical up and down sealing and cutting shrink packaging machine designed for the refined production of cosmetic films. Mainly for high and thin products, it can automatically complete the steps of feeding, film wrapping, sealing and cutting, shrinking, etc., to ensure that the sealing line is in the middle position, auto film blowing, and the sealing line is thin, suitable for POF film and adhesive film. The heat shrinkable packaging effect is beautiful, smooth and wrinkle-free, no need for personnel to operate, the packaging speed is 5-40 pcs/min, and the work efficiency is high. This sealing and shrinking packaging machine is also suitable for printing, color box, medicine, daily chemical, auto parts, food and other industries.
Standard specification
Speed
15-40 pcs/min
Packing Size
L≥100mm, H≤180mm, W+H ≤ 380 mm, H+L ≤ 450mm (can do custom design)
Power Supply
220V 1PH or 380 VAC 3Ph
Power
3 kW
Cutter Size
L 555mm x W 450mm
Air Consumption
6-8 m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L1785×W1420×H1340mm
Machine Weight
650 KG

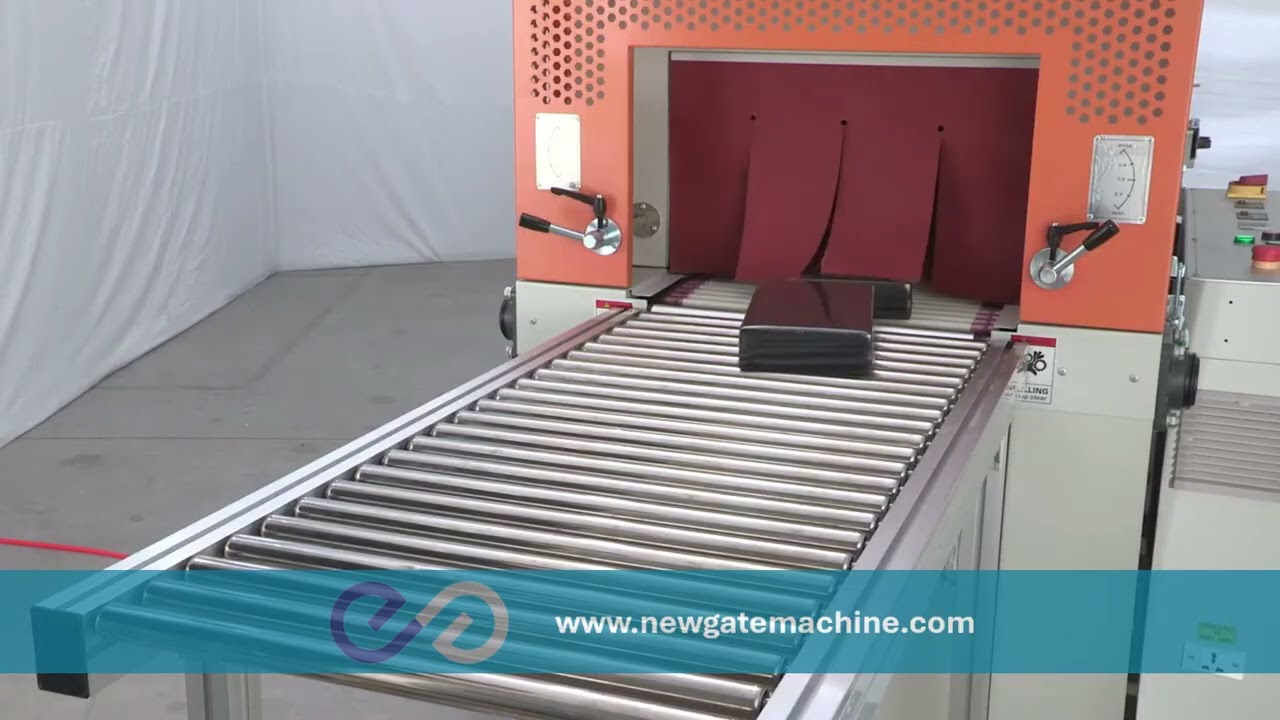

Option: Heating Tunnel
Mac temp:
200 °C
Power Supply:
220V 1PH or 380 VAC 3Ph
Power:
16kW
Standard Dimension:
L1850×W1095×H1325mm
Weight:
530 KG
