Model: NW-GKPL-545

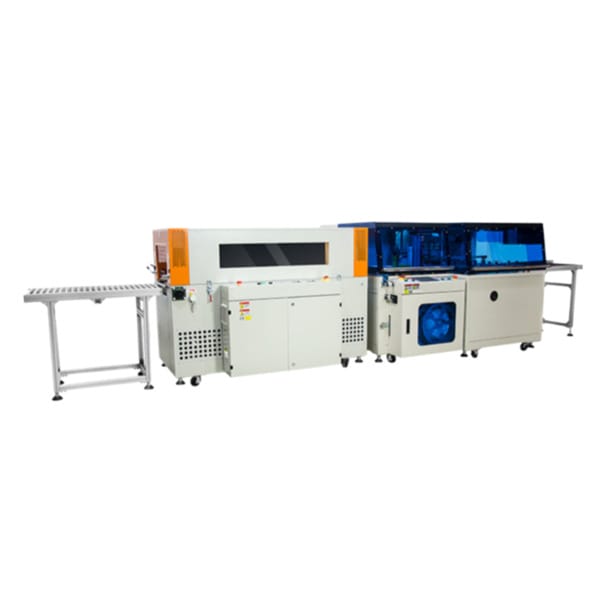

Side seal packing machine with shrink tunnel
The auto side-sealing packaging machine with heating tunnel is a medium-speed automatic sealing, cutting and packaging machine designed for mass production. The whole machine is equipped with a PLC program system. Feeding length, automatic film sealing, cutting and shrinking of the product, detection switch control the motor to automatically rewind the waste film. In order to realize the features of unmanned automatic shrinking, the machine has high working efficiency and is suitable for packaging products of various sizes. It is widely used in cosmetics, aluminum, pipes, printing, photo frames, electronics, daily chemicals, and other mass-production industries.
Standard specification
Speed
3-35 pcs/min
Packing Size
L≥100mm, H≤170, W+H ≤ 400 mm (can do custom design)
Power Supply
220V 1PH or 380 VAC 3Ph
Power
2.5 kW
Cutter Size
490mm (can do custom the length, as long as 1500-2000mm)
Air Consumption
4-8 m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L1720×W1415×H1320mm
Machine Weight
450KG

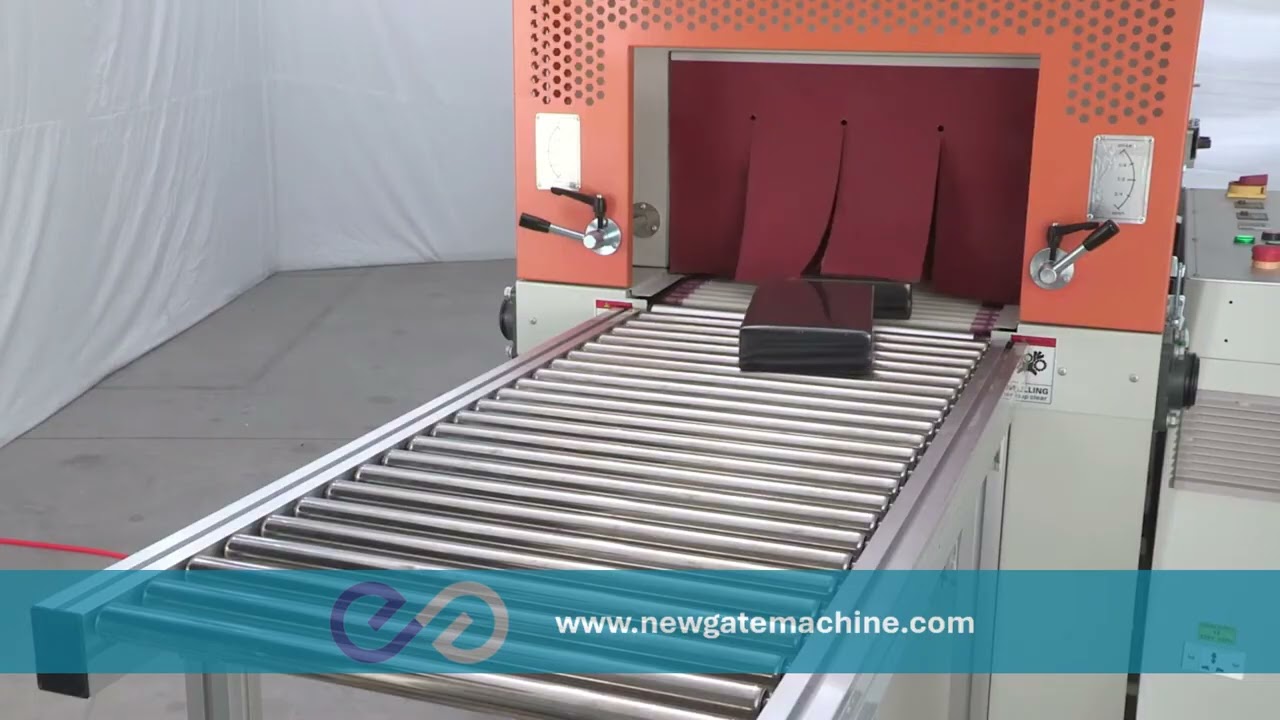

Option: Heating Tunnel
Mac temp:
200 °C
Power Supply:
220V 1PH or 380 VAC 3Ph
Standard Dimension:
L1850×W1095×H1325mm
Power:
16kW
Weight:
350KG
