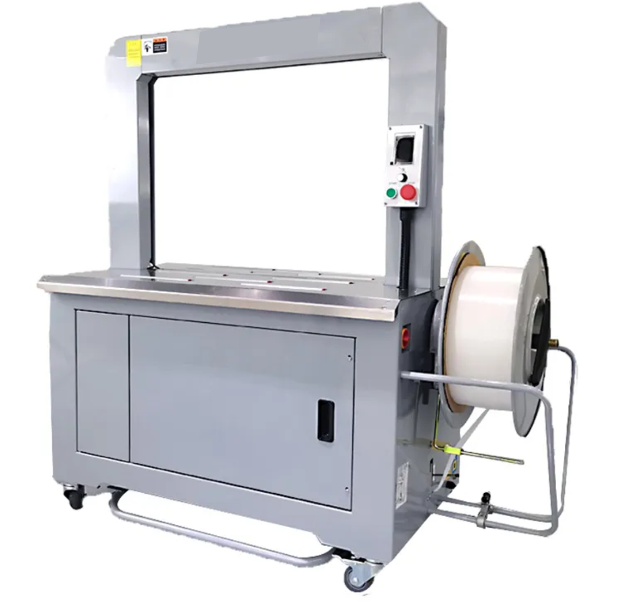

Model: Q8 Series
The Q8 series is an automatic strapping machine, suitable for the strapping and packing of conventional objects and all kinds of cartons. The biggest feature of this series of machines is that it can use 0.35mm thick PP tape, which saves users a lot of consumable costs. It is considered as a high speed automatic strapping machine that can make 1.5 seconds/strap, where it offers both manual and auto mode operation.
Standard specification
Speed
1.5 Seconds/Strap
Driving Equipment
DC motor (Q8 and Q8D) and Servo motor (Q8S model)
PP Strap Spec:
Width 9/12mm,thickness 0.35-0.65mm
Arch Size:
600 x 500mm,800 x 600mm(and offer customized)
Strapping Size
Max 600 x 450 Min 100 x50mm (W600 x H500mm)
Max Strapping Tension
10-400N
Power Supply
220VAC 1PH
Power
500W
Control
PCB or PLC
Machine Dimension: (L x W x H)
1255*700*1400mm (W600*H500mm)
Machine Weight
140KG
