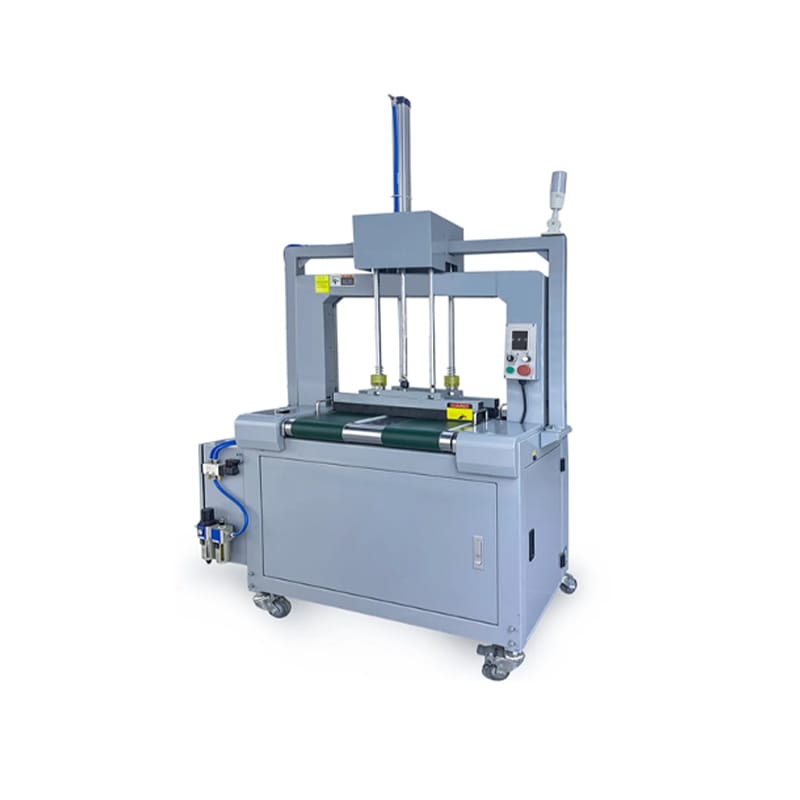

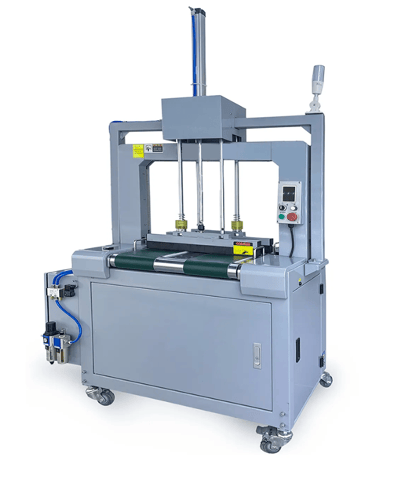

Model: QM-2P
The QM2P is a high speed full automatic strapping machine that can make 1.7 seconds/strap with 2 Belts table to automatically deliver products in and out, where user can select to use manual or auto mode operation. The control is based on PCB+LCD screen to easy visualize temperature and banding tension. It is also built-in with banding count function and electronic double banding tension adjustment. Strap is easy to load and unload.
Standard specification
Speed
1.7 Seconds/Strap
Driving Equipment
Servo motor
PP Strap Spec:
Vergin material 9-12mm(width) x 0.4-0.65mm (thickness)
Arch Size:
W800 x H600mm
Strapping Size
Max L no limit*W700 x H550mm Min L 120*W200*H100mm
Roll inner diameter
Ø 200mm
Max Strapping Tension
20-400N
Loading Weight
2-25kg
Power Supply
220VAC 1PH
Power
900W
Control
PCB + LCD Screen
Machine Dimension: (L x W x H)
L1700*W685*H1530mm
Machine Weight
280KG
