Model: TD88-Series

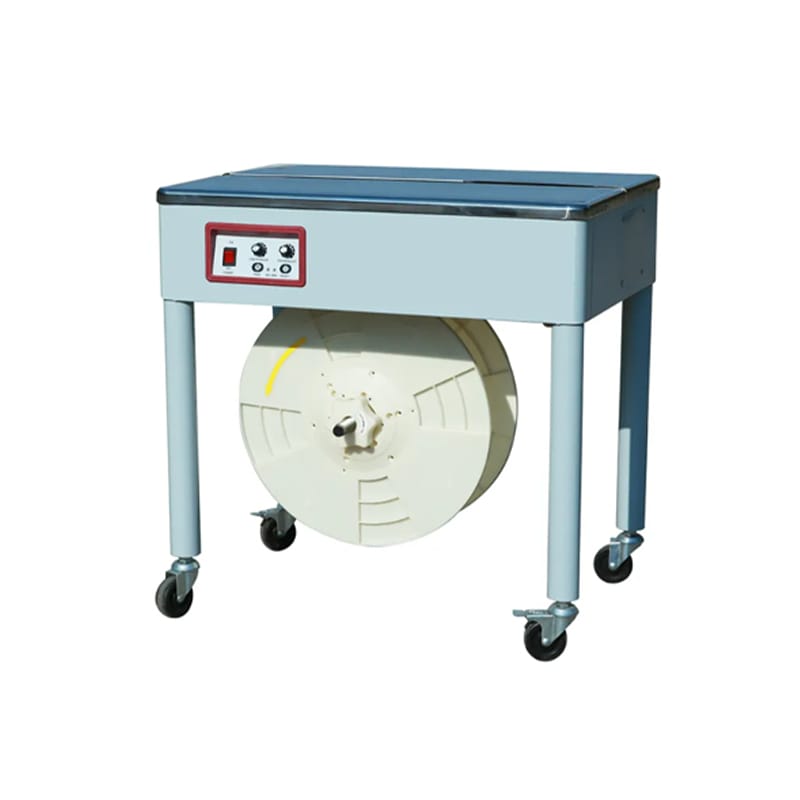

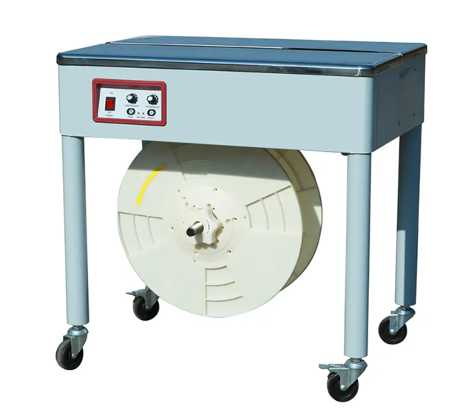

There are three type of TD88 series, which are: TD88 (Close body), TD88-A (Open Body- like showing at the reference figure) and TD88-AL (Low-table open body). All of them are semi-automatic strapping machine for PP strap, equipped with double DC motor and fix length or fix tension mode, where electrical tension can be programmed from control panel.
Standard specification
Speed
</= 2.5 Seconds/Strap
PP Size
Min: 40x10mm Max: 360x180mm
PP Strapping Thickness
0.6-1.0mm
Strapping Roll Size
Height: 200mm, Core: 200mm, Outer diameter:450mm
Max Strapping Tension
5-40kg
Strapping Size
Min: 60 x 30mm, Max: No Limit
Power Supply
220VAC 1PH
Power
400W
Control
PCB + Key board control panel
Machine Dimension:
TD88 and TD 88-A: 785 x 545 x 750mm
(L x W x H)
TD88-AL: 1490 x 545 x 460mm
Machine Weight
180KG
