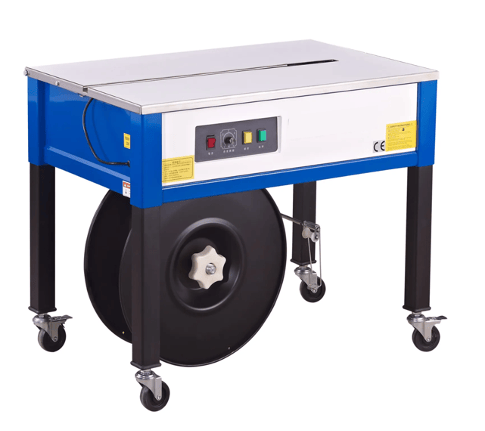

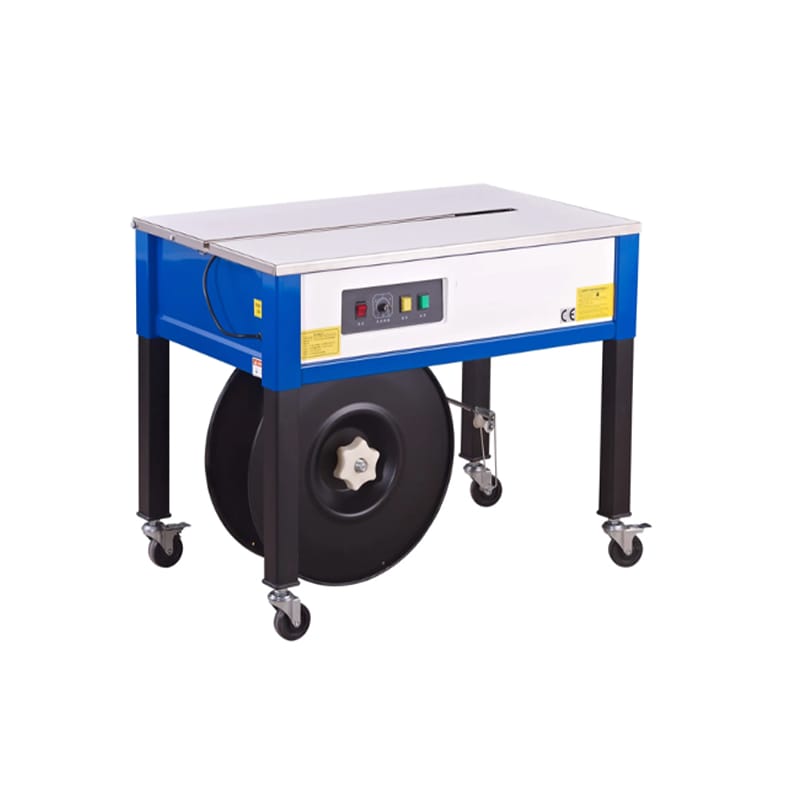

Model: XT302-Series
There are two type of XT302 series, which are: XT302 (Open Body- like showing at the reference figure) and XT302L (Low-table open body). All of them are semi-automatic strapping machine for PP strap, equipped with double DC motor and Tension detector or Round belt mode.
Standard specification
Speed
</= 2.5 Seconds/Strap
PP Strapping width
6-15mm
PP Strapping Thickness
0.6-1.0mm
Strapping Roll Size
Height: 200mm, Core: 200mm, Outer diameter:450mm
Max Strapping Tension
5-60kg
Strapping Size
Min: 60 x 30mm, Max: No Limit
Power Supply
220VAC 1PH
Power
600W
Control
PCB
Machine Dimension:
XT302: 895 x 585 x 720-870mm
(L x W x H)
XT302L: 1490 x 565 x 400-550mm
Machine Weight
80KG
