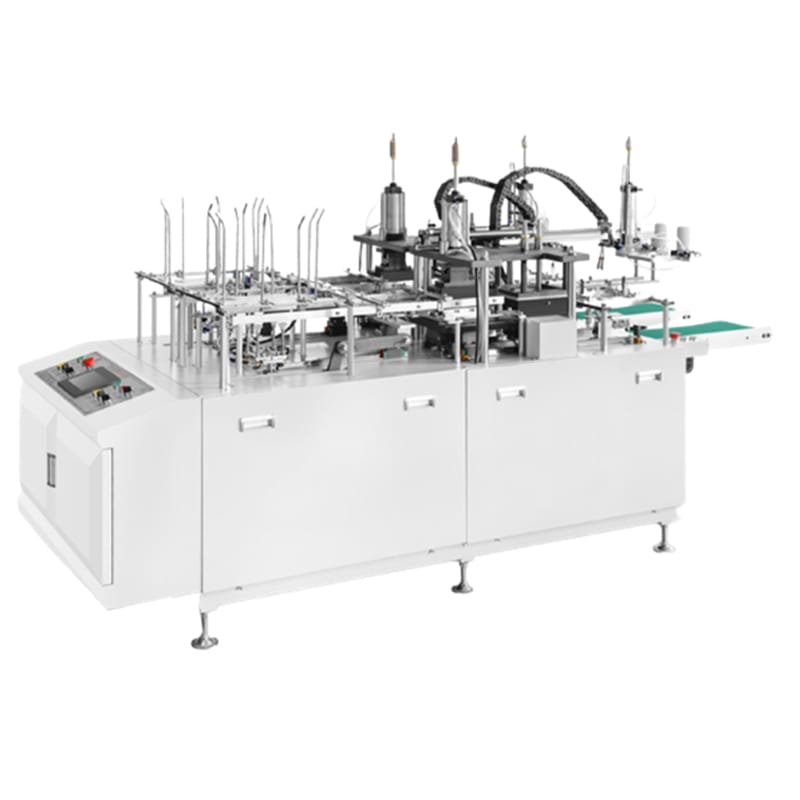

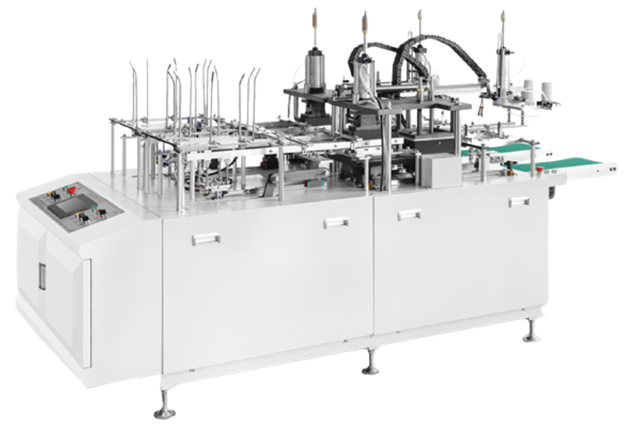

Model: NW-ZX600
An automatic intelligent thermoforming PE paper box machine adopts mechanical structure, fully automatic paper suction and paper feeding, this machine has stable, high efficiency, automatic corner folding performance, double mold heating forming, aluminum alloy mold is used to ensure mold accuracy, density and durability, and the product sealing effect is good. With beautiful appearance, it is an ideal equipment for producing paper boxes
Standard specification
Speed
15-25 Trays/min (one lane)
Tray/Box Size
L150-320×W200-380×H30-80mm (can do custom design)
Power Supply
380 VAC 3Ph
Power
10 kW
Type of closing carton
Heat forming
Air Consumption
12 m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L1780×W1860×H1460mm
Machine Weight
1000KG
