Model: NW-VKX160

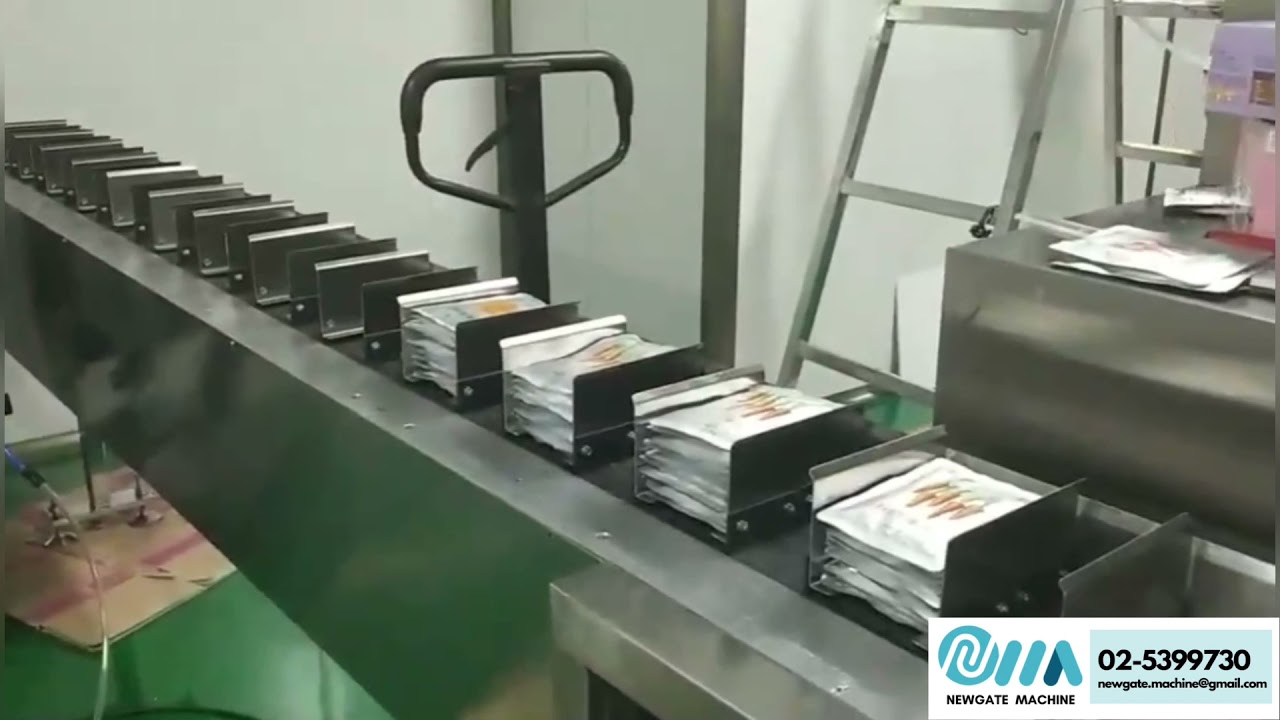

It was developed on the basis of advanced technology for vertical cartoning machine, integrating mechanics, electronics, light and gas. Vertical cartoner is applicable to automatic feeding and cartoning that the performance and work efficiency of the equipment have been greatly improved and still a stable and reliable state during operation. It offers stable performance and easy operation.
This machine is suitable to encase irregular bulk items that horizontal cartoning type cannot do.
Standard specification
Speed
30-50 boxes/min
Carton Size
L80-250×W80-180×H15-50mm (can do custom design)
Power Supply
380 VAC 3Ph
Power
0.75 kW (not including hotmelt system)
Type of closing carton
Tuck-In or Hotmelt glue
Air Consumption
7-10m3/h
Air Compressing
≥0.6Mpa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L4730×W2045×H1500mm
Machine Weight
1500KG
Leaflet feeder
Optional
