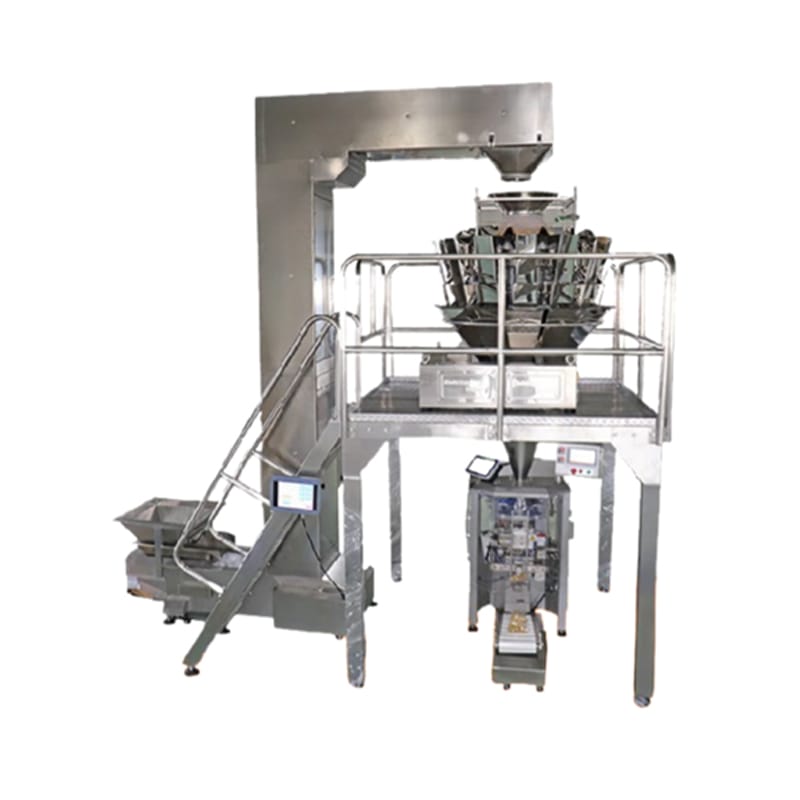

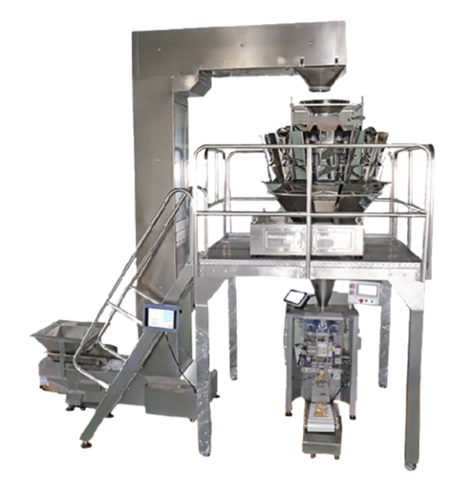

Model: NW-STGR-100K
This model is equipped with multi-head scale, which is suitable for automatic packaging of granular strip, sheet, block, ball shape, powder and other products; such as snack, chips, popcorn, puffed food, dried fruits, cookies, biscuits, candies, nuts, rice, beans, grains, sugar, salt, pet food, pasta, sunflower seeds, gummy candies, lollipop, and etc.
The machine structure is with ten-station structure, running by PLC, big touch screen centralized control, easy operation. It poises automatic fault tracking and detection device, to achieve no bag opening, no filling and no sealing, where mechanical empty bag tracking and detection device, to achieve no bag opening, no filling and no sealing is offered. The main drive system adopts variable frequency speed control, full CAM drive, running smoothly, low failure rate, and the design of the whole machine conforms to GMP standard and has passed CE certification.
Standard specification
Speed
5-45 bags/min (depending on type of products and bag sizes)
Packing Size
L: 120-400mm, W 150-300mm
Power Supply
220VAC 1PH
Power
3.5kW
Packing Type
Premade Bag (flat bag, doypack, zipper bag, hand bag, M bag, and etc)
Packing Material
Single layer PE, PE complex film and etc
Air Consumption
6-10m3/h
Air Compressing
≥ 0.6mPa
Control
Easy-to-Use HMI Touchscreen/PLC control
Machine Dimension
L2300×W1600×H1600mm
Machine Weight
1000KG
Multi-head weigher:
10 multi-head
Accuracy:
±0.5-2g
